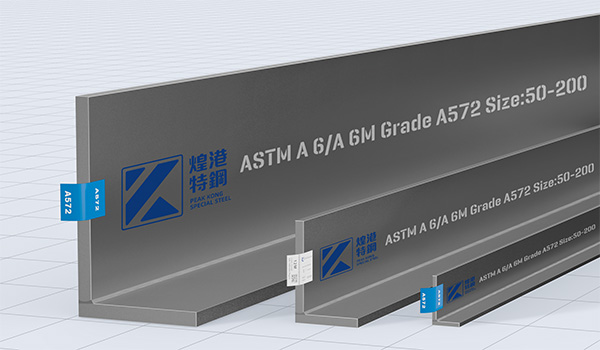

American Unequal Angles steel sections
American Unequal Angles steel sections
  • Standard: ASTM A 6/A 6M
  • Fabrication Craftsmanship: ASTM 1069, EN13919
  • Steel grade: A36, A709/A709M, A572, Gr50, Gr65, Gr80, A992, Gr50, Gr65, Gr80
  • Tolerance: ASTM A635 or A568
  • Certificate: ASTM A36/A105
In accordance with ASTM A 6/A 6M, other material grades are available on request, please see the full steel grade list.

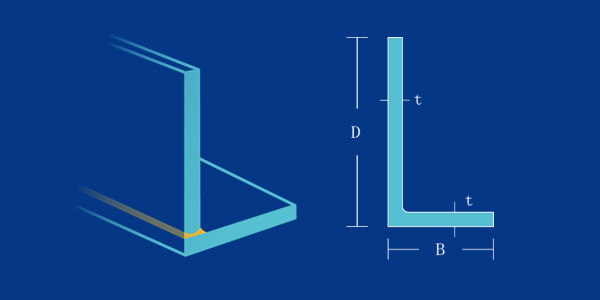

Description Execution kg/m d/mm b /mm t /mm
25×16×3Laser0.91225163
32×20×3Laser1.17132203
32×20×4Laser1.52232204
40×25×3Laser1.48440253
40×25×4Laser1.93640254
45×28×3Laser1.68745283
45×28×4Laser2.20345284
50×32×3Laser1.90850323
50×32×4Laser2.49450324
56×36×3Laser2.15356363
56×36×4Laser2.81856364
56×36×5Laser3.46656365
63×40×4Laser3.18563404
63×40×5Laser3.9263405
63×40×6Laser4.63863406
70×45×5Laser4.40370455
70×45×6Laser5.21870456
70×45×7Laser6.01170457
70×50×6Laser5.69970506
70×50×8Laser7.43170508
70×50×10Laser9.098705010
75×50×5Laser4.80875505
80×50×5Laser5.00580505
80×50×6Laser5.93580506
80×50×7Laser6.84880507
80×50×8Laser7.74580508
90×56×5Laser5.66190565
90×56×6Laser6.71790566
90×56×8Laser8.77990568
100×63×7Laser8.722100637
100×63×8Laser9.878100638
100×63×10Laser12.1421006310
100×80×6Laser8.35100806
100×80×7Laser9.656100807
100×80×8Laser10.946100808
100×80×10Laser13.4761008010
110×70×6Laser8.35110706
110×70×7Laser9.656110707
110×70×8Laser10.946110708
110×70×10Laser13.4761107010
125×80×7Laser11.066125807
125×80×8Laser12.551125808
125×80×10Laser15.4741258010
125×80×12Laser18.331258012
140×90×8Laser14.1140908
140×90×10Laser17.4751409010
140×90×12Laser20.7241409012
140×90×14Laser23.9081409014
160×100×10Laser19.87216010010
160×100×14Laser27.27416010014
160×100×16Laser30.85316010016
180×110×10Laser22.27318011010
180×110×12Laser26.46418011012
180×110×14Laser30.58918011014
200×125×12Laser34.64920012512
200×125×14Laser34.43620012514
200×125×16Laser39.04520012516
200×125×18Laser43.58820012518
Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.American Unequal Angles steel sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
American Unequal Angles steel sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
