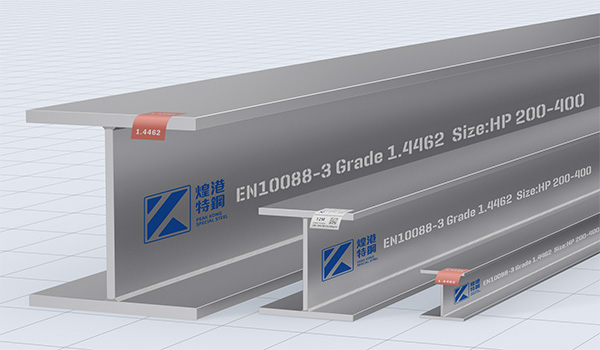

HP Stainless Steel bearing piles
  • Standard: EN 10088-3, EN10365, DIN1025
  • Technology: ISO 15614-11 or ISO 15614-14
  • Fabrication Craftsmanship: ASTM A1069, EN 13919
  • Steel grade: 1.4301, 1.4307, 1.4401, 1.4404, 1.4436, 1.4507
  • Tolerance: EN 10056-2:1993, EN10088-3
  • Certificate: According to EN10204-2.2 or 3.1B

Peakkong Special Steel can produce various sizes of EU stainless steel structural profiles in a range of production sizes that comply with EN10088-3 1D/ASTM A484 and ASME SA479 standards. Its product dimensional tolerances comply with EN10034:1993 standards. 1.4301, 1.4307, 1.4401, 1.4404, 1.4462, 2205, 2507, 304, 304L, 316, 316L, 317L stainless steel grades.

Stainless steel piles are available in many different sizes, and both standard and custom piles can be produced and supplied to order. Laser welding technology used to produce stainless steel profiles gives us the flexibility to ensure we can deliver the correct size stainless steel piles to suit the project.

We can manufacture custom angle profiles with custom sizes and lengths If you are looking for stainless steel angle profiles in non-standard sizes, with different thicknesses between flange and web, or in specific lengths up to 12 meters, we can also help you and offer special grades. For more information, please contact our sales team.

Test certificate available - please specify when ordering.

Description Execution G kg/m h b tw tf
HP 200 x 43 Laser 43.2 200 205 9 9
HP 200 x 55 Laser 54.6 204 207 11.3 11.3
HP 220 x 58 Laser 58.2 210 224.5 11 11
HP 250 x 64 Laser 63.8 246 256 10.5 10.7
HP 250 x 86 Laser 86.2 254 260 14.4 14.4
HP 260 x 76 Laser 76.2 249 265 12 12
HP 260 x 89 Laser 88.6 253 267 14 14
HP 305 x 80 Laser 79.7 299.3 306.4 11 11
Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.HP Stainless Steel bearing piles The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
HP Stainless Steel bearing piles Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
