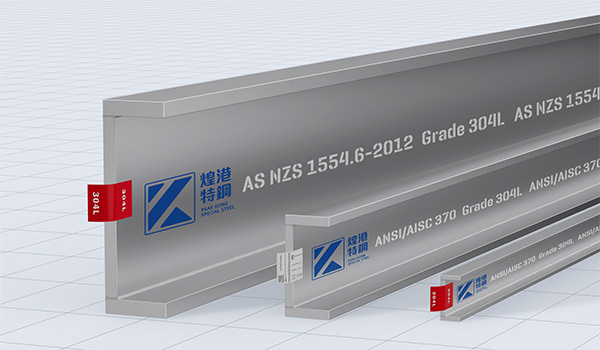

PFC – Australian Stainless Steel parallel flange channels
  • Standard: AS NZS 1554.6-2012, ANSI/AISC 370
  • Technology: ISO 15614-11 or ISO 15614-14
  • Fabrication Craftsmanship: ASTM A1069, EN 13919
  • Steel grade: 304, 304L, 316, 316L, 317L, 2205, 2507, S31254
  • Tolerance: AS NZS 1554.6-2012
  • Certificate: ASTM/AISC AS4100

Peakkong Special Steel can produce various sizes of Australian/American standard Australian Stainless Steel parallel flange channels in a range of production sizes. Laser fused Australian Stainless Steel parallel flange channels are produced in accordance with ASTM A1069/A1069M/11, and the dimensional tolerances and grades comply with ASTM A276 ASTM A484. 304, 304L, 304H, 304LN, 309S, 309H, 310S, 310H 316, 316L, 316H, 316TI, 317, 321, 347H, 904L, 2205, 2507 stainless steel grades.

We use automated laser welding technology to fabrication these Australian Stainless Steel parallel flange channels through our precision laser welding lines located in China, ensuring fast delivery worldwide.

Australian Stainless Steel parallel flange channels are used in petrochemical and marine industries, water treatment, construction and construction, LNG ships. We also offer a variety of specialty Australian Stainless Steel parallel flange channels , including duplex/superduplex stainless steel profiles, which are increasingly chosen for nuclear energy applications.

If your project requires something non-standard and your ideal size is not in the list of ‘standard’ sizes readily available then please ask our experienced sales team who can offer the right solution to help satisfy you exact requirement. For more information, please contact our sales team.

Test certificate available - please specify when ordering.

Description Execution kg/m h /mm b /mm s /mm t /mm r /mm
PFC 100 x 50 x 10Laser10.21005058.59
PFC 125 x 65 x 15Laser14.8125655.59.512
PFC 150 x 75 x 18Laser17.9150755.51012
PFC 150 x 90 x 24Laser23.9150906.51212
PFC 180 x 75 x 20Laser20.318075610.512
PFC 180 x 90 x 26Laser26.1180906.512.512
PFC 200 x 75 x 23Laser23.420075612.512
PFC 200 x 90 x 30Laser29.72009071412
PFC 230 x 75 x 26Laser25.7230756.512.512
PFC 230 x 90 x 32Laser32.2230907.51412
PFC 260 x 75 x 28Laser27.62607571212
PFC 260 x 90 x 35Laser34.82609081412
PFC 300 x 90 x 41Laser41.430090915.512
PFC 300 x 100 x 46Laser45.5300100916.515
PFC 380 x 100 x 54Laser54.03801009.517.515
PFC 430 x 100 x 64Laser64.4430100111915
Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.PFC – Australian Stainless Steel parallel flange channels The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
PFC – Australian Stainless Steel parallel flange channels Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
